Introduction

The Center of Gravity App allows users to calculate the centroid of various shapes by inputting geometric properties. The supported shapes include rectangles, polygons, circles, and circle sectors.

Getting Started

  1. Open the App: Navigate to the application page.
  2. Select a Shape: Choose the shape you want to analyze.

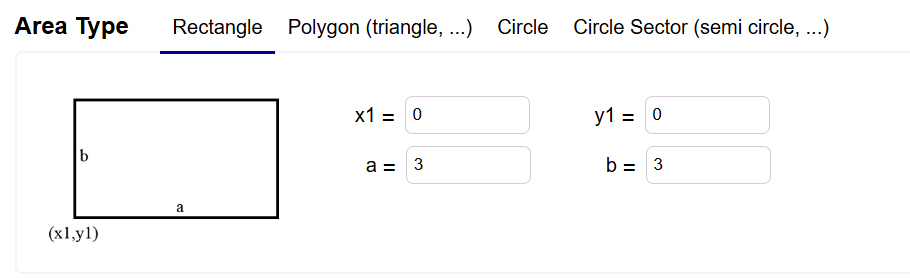

  3. Enter Input Values: Input the require_onced coordinates and dimensions.
  4. Use the Action Buttons:
    • Add Area: Adds a new geometric area to the calculation.
    • Add Gap: Adds a void or cut-out in the shape.
    • Clear All: Resets the entire calculation.

  5. View Results: The app calculates the centroid and updates the display dynamically.

Results Table

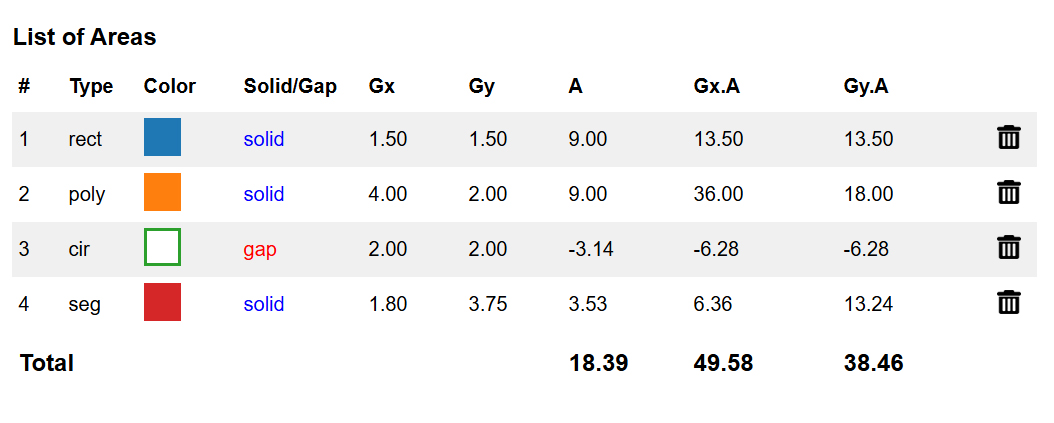

Once areas and gaps are added, a table is displayed containing Type, Color, Solid/Gap, Gx, Gy, Area, Gx.A, Gy.A and also total values for Area, Gx.A and Gy.A values. To remove an area, simply click the delete icon in its row.

Calculation of Center of Gravity

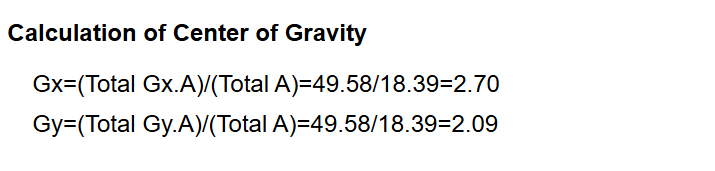

After summing the total area values, the center of gravity coordinates are calculated as:

x̄ = Σ(xA) / ΣA

ȳ = Σ(yA) / ΣA

Graphical Representation

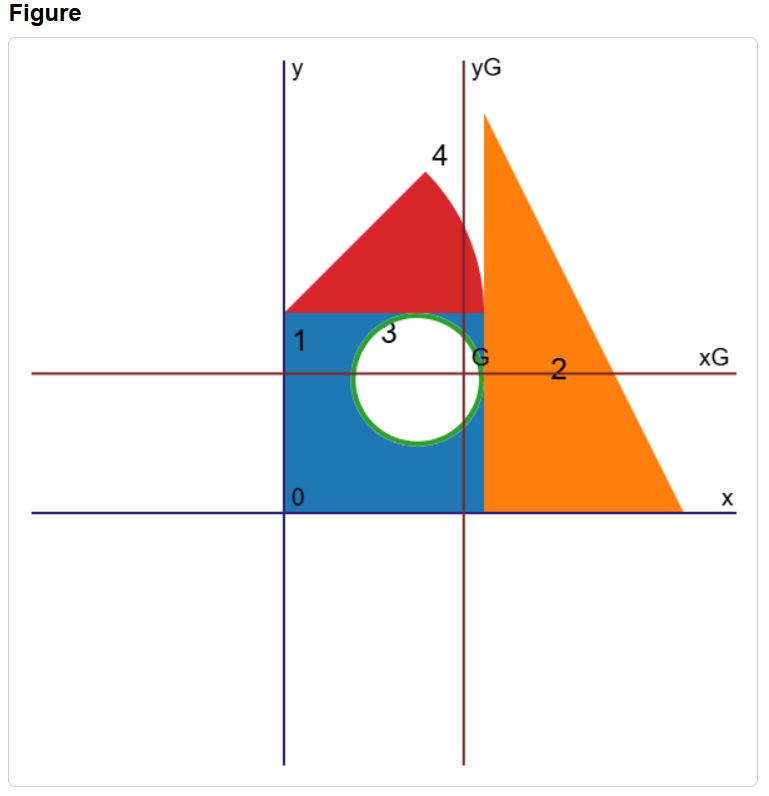

Each time you add or remove an area, the figure is dynamically redrawn to reflect the combined shape. The final combined area is displayed for reference.

Note:
  • Ensure all values are entered correctly.
  • For polygons, enter coordinates in counter-clockwise order.
  • The application updates calculations dynamically based on the inputs.

Troubleshooting

Conclusion

This app provides an intuitive interface for determining the centroid of various shapes. If you encounter any issues, refer to the input guide or reach out for support.
